Velotric Triker Electric Tricycle






Velotric Triker Ebike
Manual & Quickstart Guide
Toolkit to help you assemble the bike
Battery, Charger, Front Light, Display, Front Fender, Front & Rear Reflectors, Bell, Cable Binder, Bar End Mirror and Left & Right Pedals
Free Shipping to Canada except Yukon, Northwest Territories, and Nunavut.
7-Day Trial - Return it to us if you’re not 100% satisfied with your purchase. Restocking fee applies.
2-Year Warranty - Our 2-year limited warranty includes covered electrical components.



Specification & Geometry
- Motor Hub
- 48V, 750W,1300W Peak, 90Nm
- Battery
- 48V, 16.75 Ah, IPX7, Certificated by UL 2271
- Cell
- 18650 cell, Certificated by UL 2580
- Charger
- 48V, 3.0A Fast Charger
- Display
- 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor
- Torque and Cadence Sensor
- USB Port
- USB Type-C phone charge
- Throttle Assist
- Trigger-control, removable
- Pedal Assist
- 5 PAS Levels
- Walk Mode
- 3.2 km/h
- Front Light
- Light sensing 130 Lux /500 LM high-output integrated LED, adjustable angle
- Rear Light
- Braking Indicator, turn signal, rear light steady/flash, integrated with rear rack
- App & Apple Find My™
- APP OTA & Find My
- Turn Light
- Left/Right turn signal, with turn signal click
- Horn
- Electric horn integrated with front light, 90 db

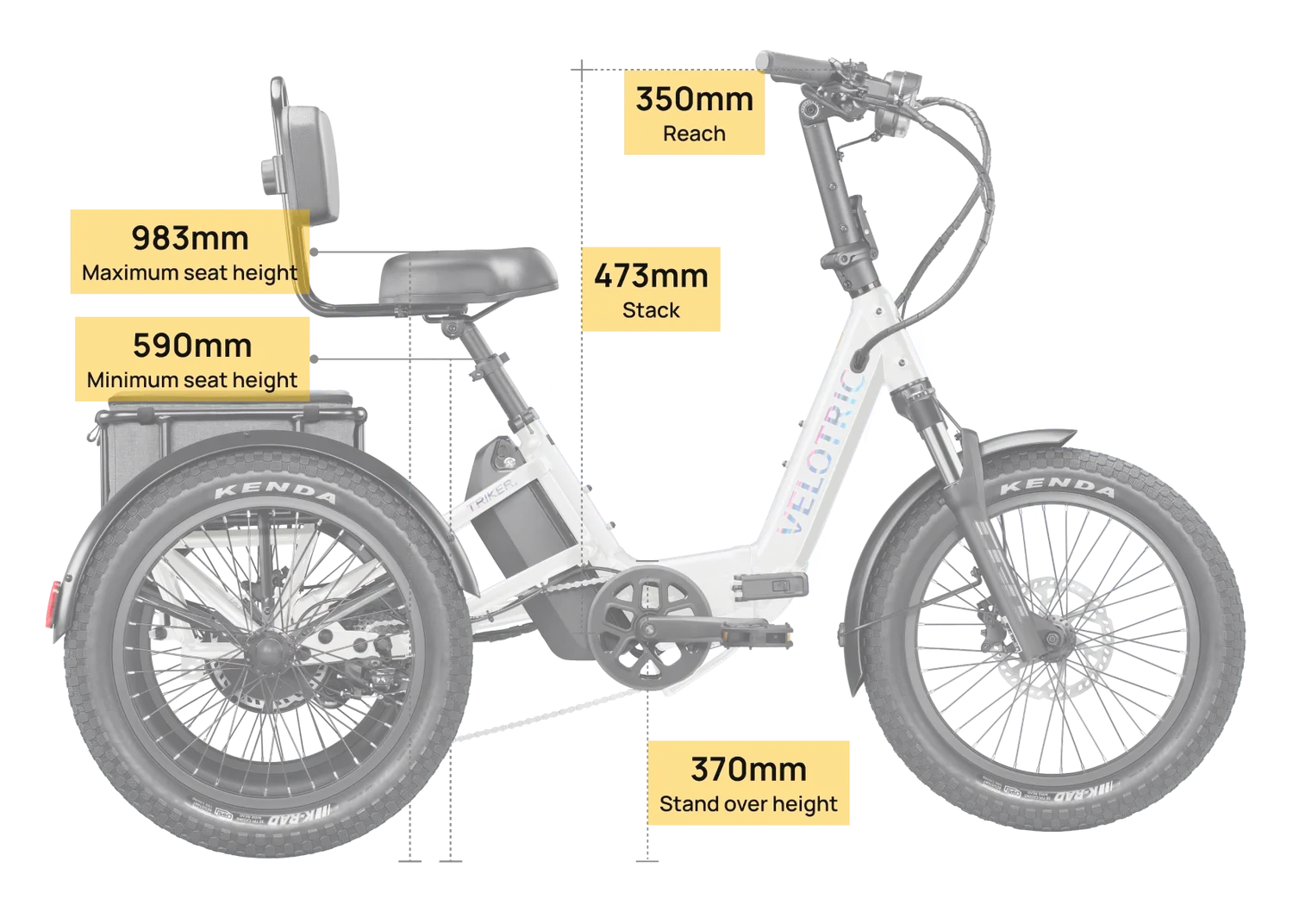

GEOMETRY
GEOMETRY

One Size | |||||
| Height | 1473~1956 mm | Reach | 350mm | Handlebar Height | 1180-1150mm |
| Wheelbase | 1090mm | Stand-Over Height | 370mm | Min Saddle Height | 590mm |
| Max Saddle Height | 983mm | Rear Track Width | 725mm | Total Length | 1647mm |

| One Size | |
|---|---|
| Height | 1473~1956 mm |
| Reach | 350mm |
| Handlebar Height | 1180-1150mm |
| Wheelbase | 1090mm |
| Stand-Over Height | 370mm |
| Min Saddle Height | 590mm |
| Max Saddle Height | 983mm |
| Rear Track Width | 725mm |
| Total Length | 1647mm |
Frequently Asked Questions
Shipped with your Triker, you'll get a rear basket, rearview mirrors, and a waterproof liner all free. You'll also find a charger and manual to get you started.
Yes! Triker works great with popular Velotric accessories like phone holders, cup holders, locks, and front baskets, all available on our website.
The maximum bike load capacity is up to 227 kg, including rider and cargo.
- Beginner Mode: Up to 13 km/h — a comfortable pace for new riders.
- Standard Mode: Up to 32 km/h (adjustable in settings).
Available speeds and use must comply with applicable provincial, territorial, and municipal regulations.
- Throttle only: Up to 80 km
- Pedal assist: Up to 97 km
Pro tip: Turn on Torque Mode and keep tires at 276 kPa to go the distance.
Yes! Thanks to a 90Nm motor and 7-speed gearing, Triker handles moderate hills with ease. Just avoid steep slopes over 15% for safety.
Absolutely. Triker is made for first-timers and confidence-seekers.
Beginner Mode: Slower speed + simplified controls
Step-through frame: Easy to mount
Slow start: Gentle acceleration, no surprises
Yes — Triker is IPX6 water-resistant and the battery is IPX7 waterproof. Light rain is no problem, but avoid heavy downpours or deep puddles.
Yes, but treat it with care. Use a weatherproof cover to protect against sun and rain. Always park on level ground and engage the parking brake.
Engage the built-in parking brake. Use any standard bike lock to keep your Triker safe and sound.
A full recharge takes 4–6 hours. The removable battery makes indoor charging easy.
Expect 500+ full charge cycles, or about 3–5 years of regular use.
- Torque sensor: Best for hilly routes and responsive riding.
- Cadence sensor: Relaxed cruising and steady flat rides.
You can swap sensors on the fly by long-pressing the M Button, or switch them in the app or display menu.
Please contact a Velotric authorized dealer in Canada or Velotric’s direct support team for repair assistance. For after-sales support, email help@velotricbike.com or call +1 888-559-3099 (7 AM–4 PM PST, Monday–Friday).
- Always fully stop before stepping off.
- Mount from the left side and keep your balance centered.
- Use the handlebars or backrest for extra stability.
Check out our tutorial video for a step-by-step guide — perfect for first-time trikers!
- Slow down before turns.
- Keep your body upright .
- Avoid steep hills (>15%), especially when going downhill.
- Always brake early for control.
Click here to view the setup guide. Speed settings and use must comply with applicable provincial, territorial, and municipal regulations.
